PTC Heater Chip Clamp Contact 3 Wraps Polyimide Insulated 110V-240V 180C Dimension 24x15x3.2mm 100mm Cable

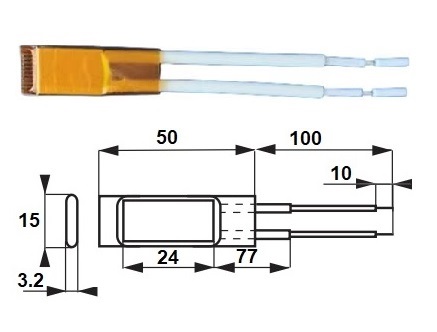

Appearance and Dimension
Unit: mm
PTC thermistor chip fitting in two metal plates, 3 wraps Polyimide Kapton sleeve insulated tightly . Supply voltage 110 up to 240V. Self-regulation constant heating, no glowing parts, no overheating, energy efficient, compact design, long service life.
Electrical Specifications
- Operating voltage : 110V- 240 V
- PTC Thermistor Surface Temperature @220V: 180C±10C
- PTC Thermistor Surface Temperature @110V: 170C±10C
- Reference temperature (Switch temperature) Tref: 170C
- Inrush current max @220V: 2A
- Resistance @25C R25 : 500–2000 Ω
- Insulation voltage 3750V/1 Second
Reliability Data
| Test Item | Standard | Test conditions | |ΔR25/R25| |
|---|---|---|---|
| Electrical endurance, cycling |
IEC 60738-1 | Room temperature, Vmax Number of cycles: 10000 |
<25% |
| Electrical endurance, constant |
IEC 60738-1 | storage at Voltage: 230V Ambient temperature: +100C Test duration: 1000 h |
<25% |
| Damp heat | IEC 60738-1 | Temperature of air: 40 °C Relative humidity of air: 93% Duration: 56 days Test according to IEC 60068-2-78 |
<25% |
